Application area
Water purification, process technology, environmental technology, process engineering, sewage technology
Product specification

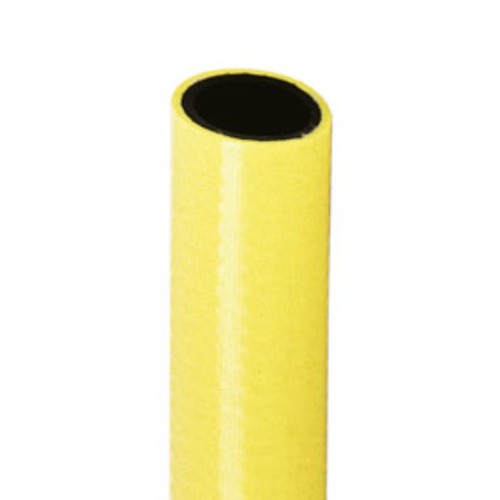

Combination of a knitted and a spiralised insert
Non-twisting and low stretch
Pressure tubing
High mechanical stability
Good resistance to weather and aging
Hardly inflammable
Cadmium-free
Technical specification
Material: PVC-P (polyvinyl chloride, soft)
Colour:
Liner: black
Jacket: yellow
Temperature range: -15 to +60 °C
Insert: fitted with specially-knitted, non-twisting insert
Max. operating pressure: 10 bar at +20 °C
Bursting pressure: approx. 3-fold dynamic operating pressure
Design: inside and outside smooth
Tolerance: DIN 16940
Marking: cadmium-free
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 340074 |
|
12,5 | 17 | 10 | 10 | 58.00 | |
| 340075 |
|
12,5 | 17 | 10 | 20 | 86.00 | |
| 340076 |
|
15 | 20 | 10 | 10 | 65.00 | |
| 340077 |
|
15 | 20 | 10 | 20 | 116.00 | |
| 340078 |
|
19 | 25 | 10 | 10 | 82.00 | |
| 340079 |
|
19 | 25 | 10 | 20 | 148.00 | |
| 340080 |
|
25 | 32 | 10 | 5 | 65.00 | |
| 340081 |
|
25 | 32 | 10 | 10 | 116.00 | |
| 340082 |
|
32 | 42 | 10 | 5 | 99.00 | |
| 340083 |
|
32 | 42 | 10 | 10 | 178.00 | |
| 340084 |
|
40 | 50 | 10 | 5 | 142.00 | |
| 340085 |
|
40 | 50 | 10 | 10 | 255.00 | |
| 340086 |
|
50 | 62 | 10 | 5 | 223.00 | |
| 340087 |
|
50 | 62 | 10 | 10 | 401.00 |
[1] at +20 °C
