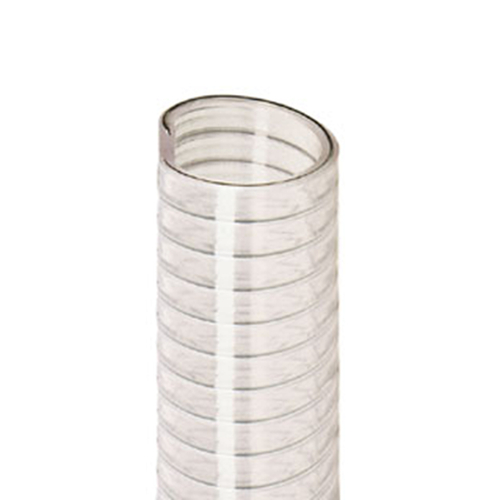

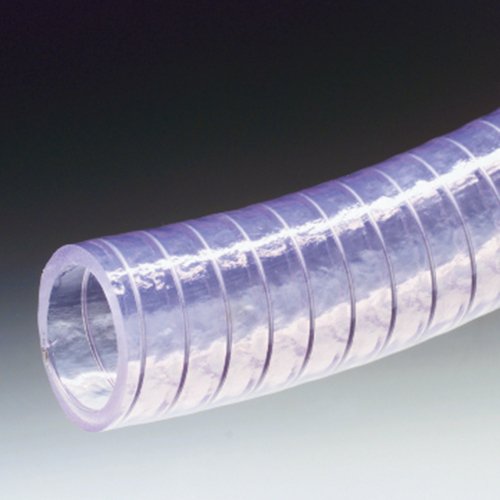

PVC Spiral Industrial Tubing

Preview: PVC Spiral Industrial Tubing Preview: PVC Spiral Industrial Tubing
PVC Spiral Industrial Tubing
PVC Spiral Industrial Tubing


Description General Information
Description
Product specification Suction and pressure tubing with smooth inner wall suitable for... more
Close menu

Product specification

Suction and pressure tubing with smooth inner wall suitable for transporting liquid and solid media

Very robust design with steel wire spiral

UV-resistant

Technical specification

Material: PVC-P (polyvinyl chloride, soft)

Colour: transparent

Bursting pressure: approx. 3-fold dynamic operating pressure

Temperature range: -10 to +65 °C

Insert: with embedded galvanized steel wire spiral

Design: inside and outside slightly corrugated

Regulations: Food quality in accordance with the requirements of EU 10/2011 (simulants A, B, C & D1)

General Information
more
Close menu
No additional information available.
