Product specification
Extremely high abrasion resistance, thus very durable
Best mechanical stability
Technical specification

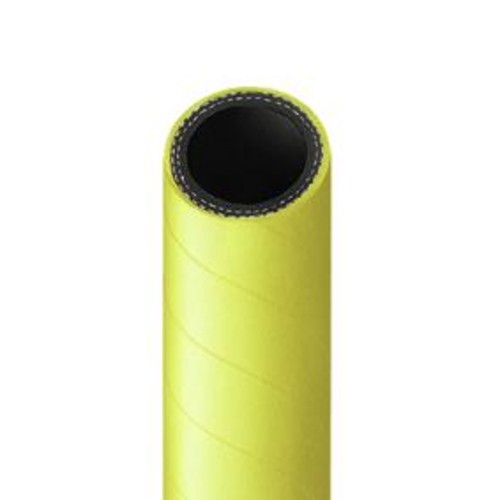

Material: SBR (natural rubber/styrene-butadiene rubber)
Insert: 2 polyester braid
Colour: inside black, outside yellow
Temperature range: -20 to +70 °C
Bursting pressure: 3-fold operating pressure
Design: inside and outside smooth
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 12566 |
|
13 | 23 | 20 | 50 | 5 | 65.00 | |
| 12567 |
|
13 | 23 | 20 | 50 | 10 | 110.00 | |
| 12568 |
|
16 | 26 | 20 | 65 | 5 | 80.00 | |
| 12569 |
|
16 | 26 | 20 | 65 | 10 | 133.00 | |
| 12570 |
|
19 | 30 | 20 | 80 | 5 | 82.00 | |
| 12571 |
|
19 | 30 | 20 | 80 | 10 | 140.00 | |
| 12572 |
|
25 | 37 | 20 | 100 | 5 | 118.00 | |
| 12573 |
|
25 | 37 | 20 | 100 | 10 | 197.00 | |
| 12574 |
|
32 | 48 | 20 | 320 | 5 | 225.00 | |
| 12575 |
|
32 | 48 | 20 | 320 | 10 | 381.00 | |
| 12576 |
|
38 | 56 | 20 | 380 | 5 | 259.00 | |
| 12577 |
|
38 | 56 | 20 | 380 | 10 | 439.00 | |
| 12578 |
|
50 | 70 | 20 | 500 | 3 | 217.00 | |
| 12579 |
|
50 | 70 | 20 | 500 | 5 | 307.00 | |
| 12580 |
|
75 | 94 | 20 | 750 | 1 | 116.00 | |
| 12581 |
|
75 | 94 | 20 | 750 | 3 | 289.00 | |
| 12582 |
|
100 | 124 | 20 | 950 | 1 | 155.00 | |
| 12583 |
|
100 | 124 | 20 | 950 | 3 | 415.00 |
[1] at +20 °C
