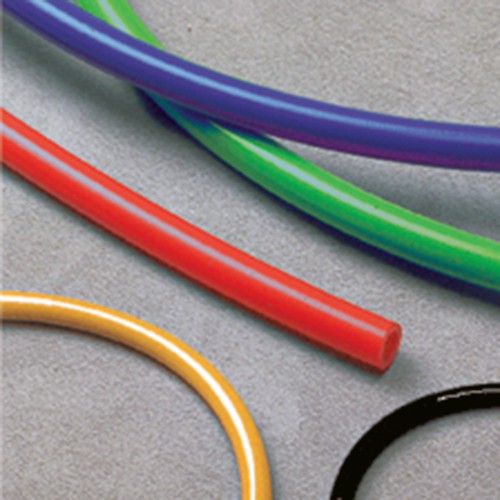

Silicone Analytical Tubing - coloured | Reichelt Chemietechnik

Application area Insulation of wires and litz wires in the areas of electronic engineering,... more

Application area

Insulation of wires and litz wires in the areas of electronic engineering, electric machine construction and apparatus engineering (especially at high frequency and high temperatures).

Product specification

The elastomer forms, in case of fire, an insulating ash consisting of silicon oxide without separating aggressive or corrosive gases.

The tubing can be laid without sticking together due to talcing.

Resistant to weather and aging

UV- and ozone-resistant

Permanently elastic at high and low temperatures

Physiologically safe

Free from natural rubber latex, dry natural rubber, or synthetic latex

Without plasticizers

Technical specification

Material: Silicone (silicone rubber)

Shore hardness A: 60° ±5° (DIN 53505)

Temperature range: -60 to +200 °C (Class H)

Sterilization: steam (+140 °C)

Density: 1.19 g/cm³

Compression set: <40 % at +175 °C / 22 h (DIN 53517)

Elongation at break: >300 % (DIN 53504 S2)

Dielectric strength: approx. 18 kV/mm (VDE 0303)

Volume resistivity: 10¹⁵ Ohm x cm (VDE 0303)

Dielectric constant: 3.0 / +25 °C / 50 Hz (DIN 53482)

Dielectric loss factor: 30*10^-4 to 250*10^-4 (VDE 0303)

Tolerance inside Ø and wall thickness: DIN ISO 3302-1 E2

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	Wandstärke mm	Farbe	Einheit m	Price Euro*
26519	0,3	0,5	0,1	blau	5	28.00
26520	0,3	0,5	0,1	blau	15	74.00
26521	0,3	0,5	0,1	braun	5	28.00
26522	0,3	0,5	0,1	braun	15	74.00
26523	0,3	0,5	0,1	gelb	5	28.00
26524	0,3	0,5	0,1	gelb	15	74.00
26525	0,3	0,5	0,1	grau	5	28.00
26526	0,3	0,5	0,1	grau	15	74.00
26527	0,3	0,5	0,1	grün	5	28.00
26528	0,3	0,5	0,1	grün	15	74.00
26529	0,3	0,5	0,1	rosa	5	28.00
26530	0,3	0,5	0,1	rosa	15	74.00
26531	0,3	0,5	0,1	rot	5	28.00
26532	0,3	0,5	0,1	rot	15	74.00
26533	0,3	0,5	0,1	schwarz	5	28.00
26534	0,3	0,5	0,1	schwarz	15	74.00
26535	0,3	0,5	0,1	violett	5	28.00
26536	0,3	0,5	0,1	violett	15	74.00
26537	0,3	0,5	0,1	weiß	5	28.00
26538	0,3	0,5	0,1	weiß	15	74.00
26539	0,3	0,5	0,1	orange	5	28.00
26540	0,3	0,5	0,1	orange	15	74.00
26541	0,3	0,7	0,2	blau	5	30.00
26542	0,3	0,7	0,2	blau	15	78.00
26543	0,3	0,7	0,2	braun	5	30.00
