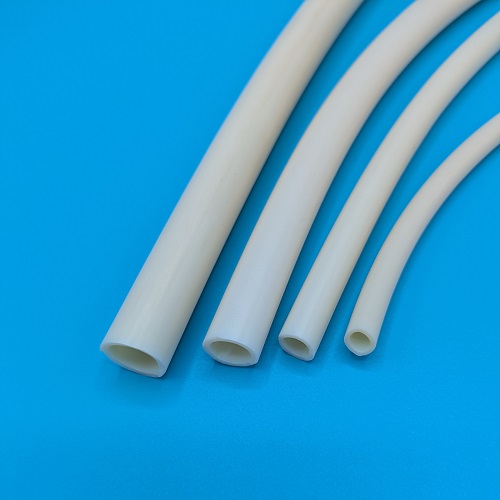

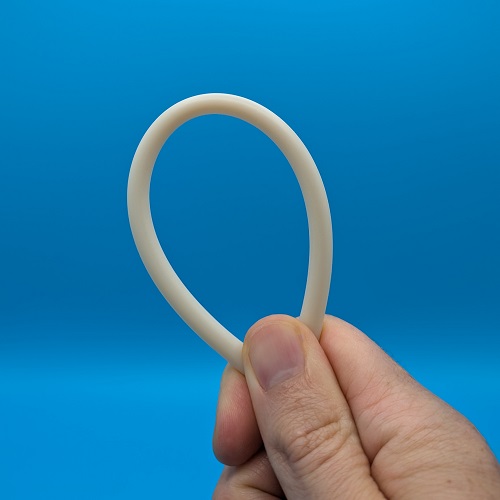

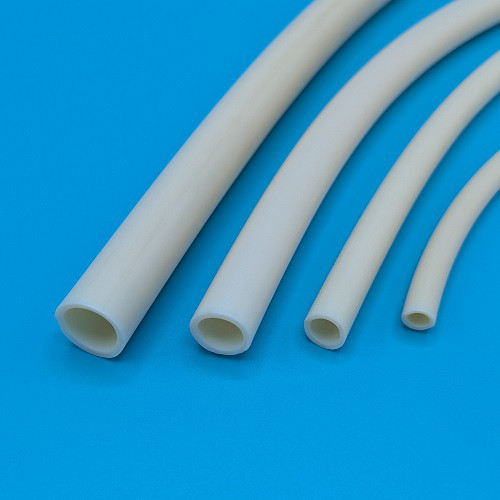

Silicone High-Temperature Chemical Tubing

Preview: Silicone High-Temperature Chemical Tubing Preview: Silicone High-Temperature Chemical Tubing Preview: Silicone High-Temperature Chemical Tubing
Silicone High-Temperature Chemical Tubing
Silicone High-Temperature Chemical Tubing
Silicone High-Temperature Chemical Tubing


Description General Information
Description
Product specification Superelastic special tubing for extreme applications at highest... more
Close menu

Product specification

Superelastic special tubing for extreme applications at highest temperatures and continuous load

Even at highest temperatures, no changes occur in the properties of material

The product is only extruded of an especially high-grade silicone elastomer and vulcanized. The cured goods do not contain any extractable constituents

Superior and outstanding elasticity

Completely odourless and tasteless

Highest resistance to cold

Very good resistance to ozone, aging, and weather

Antiadhesive surface

Very good dielectric properties

High permeability to gas

Very good flame resistance

No toxic combustion gases

Peroxide cross-linked and plasticizer-free

Technical specification

Material: Silicone (silicone rubber)

Colour: ivory

Shore hardness A: 60° ±5° (DIN 53505)

Temperature range: -60 to +300 °C (no continuous operation for 24h/7-days at +300 °C)

Density: 1.17 g/cm3 (DIN 53479)

Sterilization: autoclavable (+136 °C); hot air (+250 °C); steam (+136 °C); gas (formalin, ethylene oxide); gamma-rays

Thermal conductivity: 0.6 x 10-3 kal/sec. * cm * °C

Tearing strength: 10.4 MPa

Elongation at break: 390 % (DIN 53504)

Tear propagation resistance: 20 N/mm (ASTM D624 B)

Compression set: 50 % at +175 °C / 22 h (DIN ISO 815)

Dielectric strength: 20 kV/mm

Volume resistance: 4.2 x 1015 Ohm/cm3/+20 °C; 2.6 x 1013 Ohm/cm3/+130 °C; 5.2 x 1012 Ohm/cm3/+180 °C

Dielectric constant: 3.2 / +20 °C / 800 Hz; 2.9 / +180 °C / 800 Hz; 2.9 / +180 °C / 800 Hz

Tolerance: DIN ISO 3302-1 EN1 (0 - 4.0 mm: ±0.20 mm)
