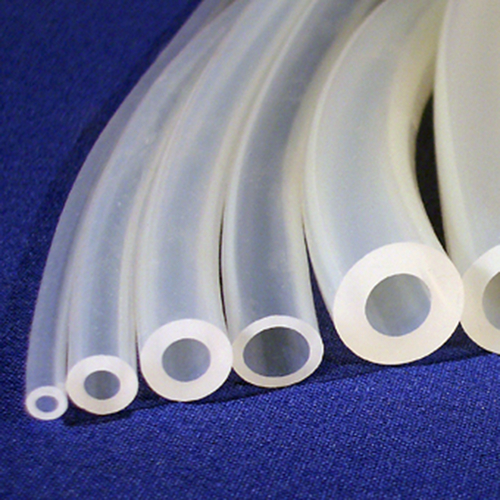

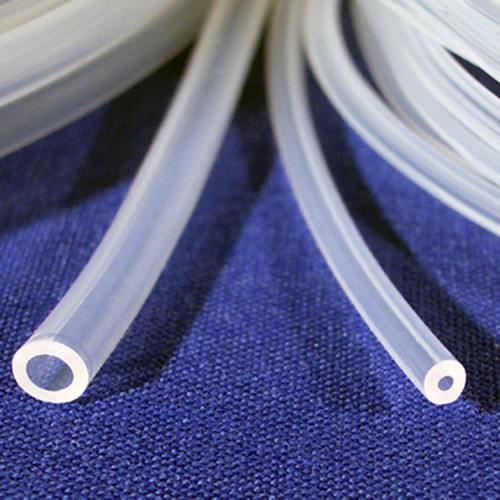

Silicone Pump Tubing - tear- and tension-proof

Preview: Silicone Pump Tubing - tear- and tension-proof Preview: Silicone Pump Tubing - tear- and tension-proof Preview: Silicone Pump Tubing - tear- and tension-proof Preview: Silicone Pump Tubing - tear- and tension-proof
Silicone Pump Tubing - tear- and tension-proof
Silicone Pump Tubing - tear- and tension-proof
Silicone Pump Tubing - tear- and tension-proof
Silicone Pump Tubing - tear- and tension-proof


Description General Information
Description
Application area Analytical technology, biotechnology, medical engineering, process... more
Close menu

Application area

Analytical technology, biotechnology, medical engineering, process engineering, food processing technology

Product specification

Silicone peristaltic pump tubing are extruded from an especially high-grade silicone elastomer and are vulcanized. The cured goods do not contain any extractable constituents, they are completely odourless and tasteless, physiologically inert, and absolutely well tolerated by the body. Resistance to most organic solvents. The formulation meets the regulations of FDA § 177.2600, USP Class VI and BfR XV.

Free from natural rubber latex, dry natural rubber, or synthetic latex

Technical specification

Material: Silicone (silicone rubber)

Colour: translucent

Shore hardness A: 50°

Temperature range: -55 to +220 °C

Sterilization: autoclavable (+136 °C); hot air (+160 °C)

Density: 1.13 g/cm3

Elongation at break: 640 %

Tearing strength: 9.5 MPa

Tear propagation resistance: 38 kN/m

Regulations: FDA §177.2600; BfR XV; USP Class VI

General Information
more
Close menu
No additional information available.
