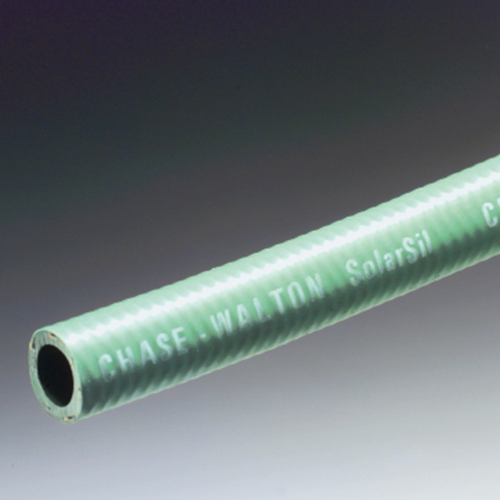

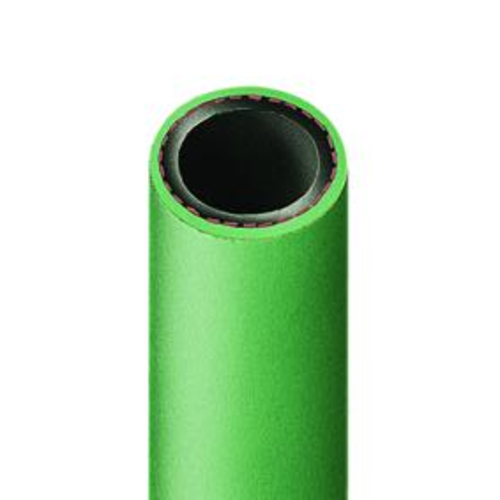

Silicone Cooler Tubing
Product specification Special silicone compound for hot water applications in engine and... more
Product specification
Special silicone compound for hot water applications in engine and vehicle construction, heating engineering, and air-conditioning technology
Pressure tubing for hot water applications
Highest flexibility in cold
Highest resistance to ozone, aging, and weather
Good dielectric properties
Antiadhesive surface
Good elastic behaviour
Technical specification
Material: silicone, MVQ (polysiloxane)
Colour: inside red, outside green
Temperature range: -54 to +177 °C
Insert: PA-braiding
Design: inside and outside smooth, fabric imprint
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
| Anzahl Einlagen |
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Anzahl Einlagen
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
12485 |
|
8 | 18 | 4,5 | 1 | 1 | 104.00 | |
12486 |
|
8 | 18 | 4,5 | 1 | 3 | 258.00 | |
12487 |
|
10 | 20 | 4 | 1 | 1 | 110.00 | |
12488 |
|
10 | 20 | 4 | 1 | 3 | 279.00 | |
12489 |
|
13 | 23 | 3,5 | 1 | 1 | 121.00 | |
12490 |
|
13 | 23 | 3,5 | 1 | 3 | 299.00 | |
12491 |
|
16 | 26 | 3,5 | 1 | 1 | 141.00 | |
12492 |
|
16 | 26 | 3,5 | 1 | 3 | 340.00 | |
12495 |
|
19 | 29 | 2,5 | 1 | 1 | 183.00 | |
12496 |
|
19 | 29 | 2,5 | 1 | 3 | 435.00 | |
12497 |
|
22 | 32 | 2,5 | 1 | 1 | 194.00 | |
12498 |
|
22 | 32 | 2,5 | 1 | 3 | 488.00 | |
12499 |
|
25 | 35 | 2,5 | 1 | 1 | 200.00 | |
12500 |
|
25 | 35 | 2,5 | 1 | 3 | 496.00 | |
12501 |
|
28 | 36 | 5,5 | 3 | 1 | 255.00 | |
12502 |
|
28 | 36 | 5,5 | 3 | 2 | 451.00 | |
12503 |
|
32 | 40 | 5 | 3 | 1 | 258.00 | |
12504 |
|
32 | 40 | 5 | 3 | 2 | 463.00 | |
12505 |
|
35 | 43 | 5 | 3 | 1 | 264.00 | |
12506 |
|
35 | 43 | 5 | 3 | 2 | 480.00 | |
12507 |
|
38 | 46 | 5 | 3 | 1 | 281.00 | |
12508 |
|
38 | 46 | 5 | 3 | 2 | 504.00 | |
12509 |
|
41 | 49 | 4,5 | 3 | 1 | 289.00 | |
12510 |
|
41 | 49 | 4,5 | 3 | 2 | 514.00 | |
12511 |
|
45 | 53 | 4,5 | 3 | 1 | 295.00 |
