Silicone Hot Air Tubing - one layer | Reichelt Chemietechnik

Product specification Highest flexibility and elasticity at constant mechanical strength... more

Product specification

Highest flexibility and elasticity at constant mechanical strength

Robust type

Suitable for vacuum applications

Good abrasion resistance

Even at highest temperatures, no changes occur in the properties of material

Tubing made of an especially high-grade silicone-coated glass fabric

Good resistance to ozone, aging, and weather

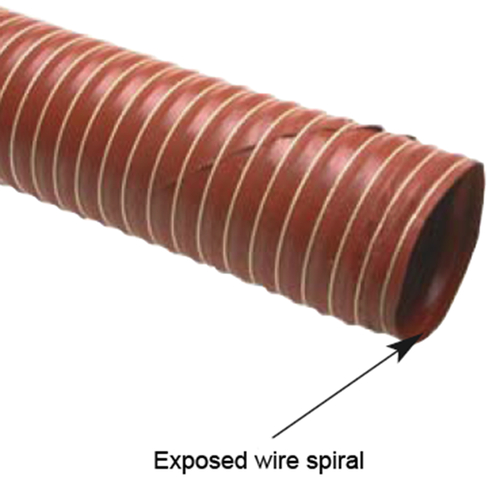

Fitted with inlying spiral made of zinc-plated spring steel

Technical specification

Material: silicone-coated glass fabric

Colour: red

Temperature range: -85 to +310 °C

Insert: inlying spring spiral

Option: ex factory extension of the max. production units (4 m) possible by splicing

No additional information available.

Item	Inside Ø mm	max. Betr.-Druck¹ bar	Vakuum¹ bar	Einheit m	Price Euro*
330209	13	1,8	-0,58	1	140.00
330210	13	1,8	-0,58	2	223.00
330211	13	1,8	-0,58	4	334.00
330212	19	1,5	-0,53	1	150.00
330213	19	1,5	-0,53	2	240.00
330214	19	1,5	-0,53	4	360.00
330215	25	1,4	-0,53	1	157.00
330216	25	1,4	-0,53	2	251.00
330217	25	1,4	-0,53	4	377.00
330218	32	1,4	-0,5	1	161.00
330219	32	1,4	-0,5	2	259.00
330220	32	1,4	-0,5	4	386.00
330221	38	1,4	-0,5	1	167.00
330222	38	1,4	-0,5	2	268.00
330223	38	1,4	-0,5	4	401.00
330224	44	1,2	-0,44	1	176.00
330225	44	1,2	-0,44	2	277.00
330226	44	1,2	-0,44	4	414.00
330227	51	1,2	-0,44	1	178.00
330228	51	1,2	-0,44	2	281.00
330229	51	1,2	-0,44	4	420.00
330230	63	1,1	-0,4	1	185.00
330231	63	1,1	-0,4	2	294.00
330232	63	1,1	-0,4	4	439.00
330233	70	1,1	-0,35	1	187.00
