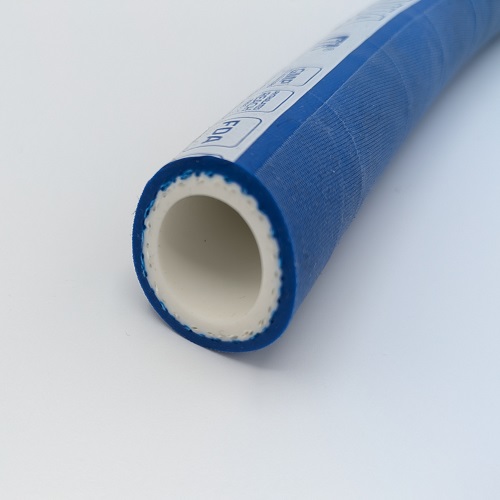

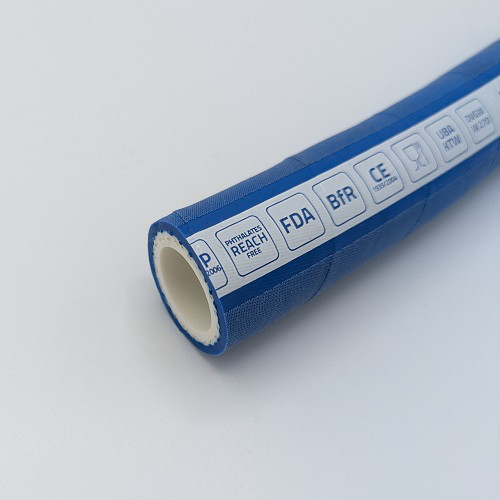

Silicone Food and Drinking Water Tubing

Application area Food and beverage industry, drinking water supply, biotechnology Product... more

Close menu

Application area

Food and beverage industry, drinking water supply, biotechnology

Product specification

Food-grade hose for media of the highest purity.

Flexible and suitable for suction and pressure applications due to a double-walled construction of phthalate-free silicone with a heat-resistant, synthetic textile lining as a pressure carrier. For vacuum applications, a polymer spiral is also integrated (optional).

Physiologically safe and absolutely suitable for foodstuffs and drinking water, in accordance with the conformity regulations.

Excellent UV, ozone and aging resistance.

Technical specification

Material:

Liner: Silicone, white, according to FDA, BfR, UBA KTW, DVGW W270, EG 1935/2004

Reinforcement: synthetic textile insert

Spiral: thermoplastic polymer (optional)

Cover: Silicone, blue, cloth finish, abrasion, aging, and ozone resistant

Colour: blue (cover), white (liner)

Temperature range: -60 to +160 °C

Sterilization: saturated steam (+135 °C for 18 minutes)

Max. operating pressure: 4 to 20 bar at +20 °C (reduction of 20 % at +100 °C)

Bursting pressure: approx. 3-fold operating pressure

Vacuum resistance: -0,6 to -0,7 bar at +20 °C (Type with spiral)

Tolerance: ISO 1307

Regulations: FDA 21 CFR §177.2600, BfR XV, EG 1935/2004, EG 1907/2006 (REACH), UBA KTW and DVGW W270 (cold water up to +55 °C)

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	Vakuum bar	max. Betr.-Druck bar	Platzdruck bar	min. Biegeradius mm	Spirale	Gewicht kg/m	Einheit m	Price Euro*
343000	10	19		20	60	50	ohne	0,25	1	70.00
343001	10	19		20	60	50	ohne	0,25	5	312.00
343002	10	19		20	60	50	ohne	0,25	10	510.00
343003	13	22		18	54	65	ohne	0,31	1	78.00
343004	13	22		18	54	65	ohne	0,31	5	342.00
343005	13	22		18	54	65	ohne	0,31	10	560.00
343006	16	26		18	54	80	ohne	0,42	1	92.00
343007	16	26		18	54	80	ohne	0,42	5	412.00
343008	16	26		18	54	80	ohne	0,42	10	680.00
343009	19	29		13	39	95	ohne	0,48	1	106.00
343010	19	29		13	39	95	ohne	0,48	5	470.00
343011	19	29		13	39	95	ohne	0,48	10	770.00
343012	19	31	-0,7	13	39	120	mit	0,6	1	168.00
343013	19	31	-0,7	13	39	120	mit	0,6	5	738.00
343014	19	31	-0,7	13	39	120	mit	0,6	10	1,230.00
343015	25	35		12	36	140	ohne	0,6	1	136.00
343016	25	35		12	36	140	ohne	0,6	5	610.00
343017	25	35		12	36	140	ohne	0,6	10	1,030.00
343018	25	37	-0,7	12	36	150	mit	0,7	1	168.00
343019	25	37	-0,7	12	36	150	mit	0,7	5	766.00
343020	25	37	-0,7	12	36	150	mit	0,7	10	1,394.00
343021	32	44	-0,7	12	36	190	mit	0,7	1	207.00
343022	32	44	-0,7	12	36	190	mit	0,7	5	948.00
343023	32	44	-0,7	12	36	190	mit	0,7	10	1,724.00
343024	38	50	-0,7	10	30	230	mit	0,75	1	244.00
