Application area

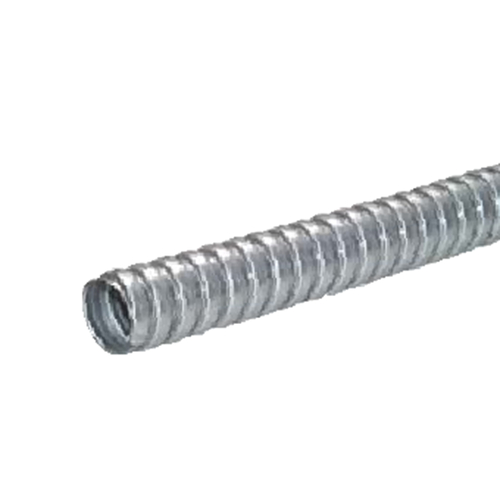

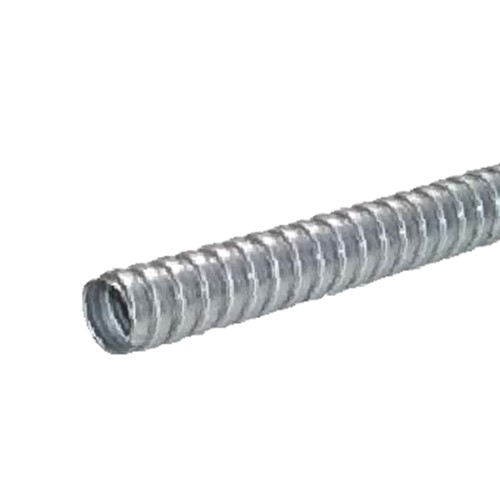

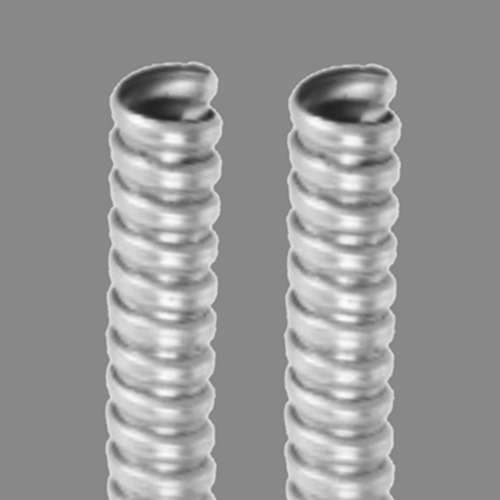

Flexible metal tube for accommodation of tubing, cables or feeders to protect them from welding sparks (welding spatter), splash-water or spatter.
Material: Galvanized steel
Protection rating: IP50
Temperature range: -50 to +250 °C
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 14593 |
|
6 | 8 | 14 | 5 | 125.00 | |
| 14594 |
|
6 | 8 | 14 | 10 | 211.00 | |
| 14595 |
|
8 | 11 | 16 | 5 | 146.00 | |
| 14596 |
|
8 | 11 | 16 | 10 | 244.00 | |
| 14597 |
|
12 | 15 | 22 | 5 | 179.00 | |
| 14598 |
|
12 | 15 | 22 | 10 | 299.00 | |
| 14599 |
|
19 | 22 | 30 | 3 | 125.00 | |
| 14600 |
|
19 | 22 | 30 | 5 | 179.00 |
