High-Flexible ETFE/PUR Composite Tubing

Preview: High-Flexible ETFE/PUR Composite Tubing Preview: High-Flexible ETFE/PUR Composite Tubing
High-Flexible ETFE/PUR Composite Tubing
High-Flexible ETFE/PUR Composite Tubing


Description General Information
Description
Einsatzgebiet Zur Anwendung bei der Förderung von aggressiven Medien mit begrenztem... more
Close menu

Einsatzgebiet

Zur Anwendung bei der Förderung von aggressiven Medien mit begrenztem Platz.

Produktspezifikation

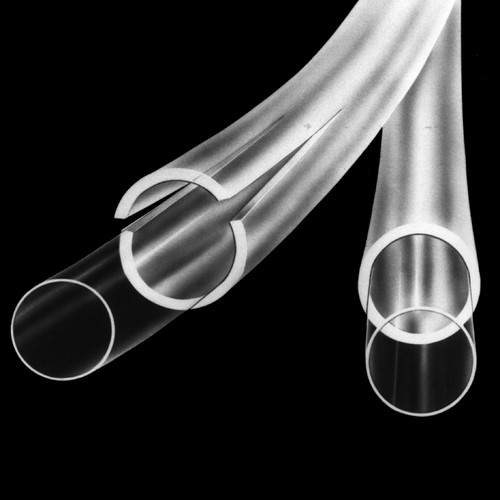

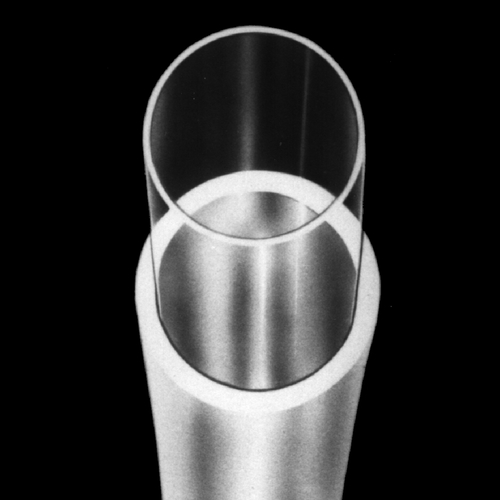

Extrem medienbeständiger ETFE-Schlauch mit flexibler PUR-Ummantelung ohne Weichmacher.

Die Innenseele ist frei von extrahierbaren Bestandteilen, ohne Phthalate, physiologisch unbedenklich (jedoch keine FDA-Konformität).

Höchste Medienresistenz aufgrund der Innenseele aus Fluorkunststoff, besonders gegen Säuren und Laugen.

Der Außenmantel ist hoch abrieb- und verschleißfest

Relativ elastisches Verhalten, kleine Biegeradien möglich, kann somit leicht verlegt werden ohne Abzuknicken (jedoch kein Einsatz in Schlauchpumpen möglich!)

Kann im Bereich CIP und SIP eingesetzt werden.

Der Schlauch wird vornehmlich unter Einsatz unserer MULTIFIT®-Verschraubungen der Serie EMP-3 verwendet und bietet damit vielfältige Anschlussmöglichkeiten als Winkel, mit Gewinden oder geraden Verbindungen.

Technische Spezifikation

Werkstoff:

Innenseele: ETFE (Ethylen-Tetrafluorethylen)

Außenmantel: PUR (Polyurethan)

Farbe: farblos-durchscheinend

Temperaturbereich: -20 bis +80 °C

Max. Betriebsdruck: 6 bar bei +20 °C

General Information
more
Close menu
No additional information available.
