Product specification
Good temperature resistance
Best mechanical stability
Remarkable abrasion resistance
Good impact toughness
Low moisture absorption due to extremely low density
High dimensional stability of tubing
Technical specification

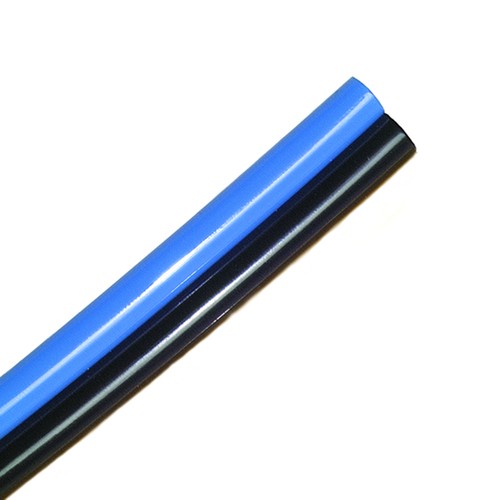

Material: PA 12 soft (polyamide 12 soft)
Colour: blue / black
Temperature range: -50 to +120 °C, for a short time +150 °C
Sterilization: steam (+136 °C); gas (ethylene oxide); gamma-rays
Density: 1.02 g/cm3
Permeability to gas: low permeability
Physiological assessment: safe
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 302781 |
|
2 | 4 | 34 | 25 | 5 | 93.00 | |
| 302782 |
|
2 | 4 | 34 | 25 | 15 | 229.00 | |
| 302783 |
|
4 | 6 | 22 | 35 | 5 | 118.00 | |
| 302784 |
|
4 | 6 | 22 | 35 | 15 | 283.00 | |
| 302785 |
|
6 | 8 | 18 | 55 | 5 | 140.00 | |
| 302786 |
|
6 | 8 | 18 | 55 | 15 | 341.00 | |
| 302787 |
|
8 | 10 | 14 | 90 | 5 | 165.00 | |
| 302788 |
|
8 | 10 | 14 | 90 | 15 | 405.00 |
[1] at +20 °C
