Application area
Conveyance of neutral, liquid, and gaseous media in moving and vibrating systems such as cooling brine and other cooling liquids, hydraulic and pneumatic robot control systems, automated metering systems in industrial plants, as well as in experimental prototype building and pilot plants of physics, biotechnology, chemistry, and medical engineering.
Product specification

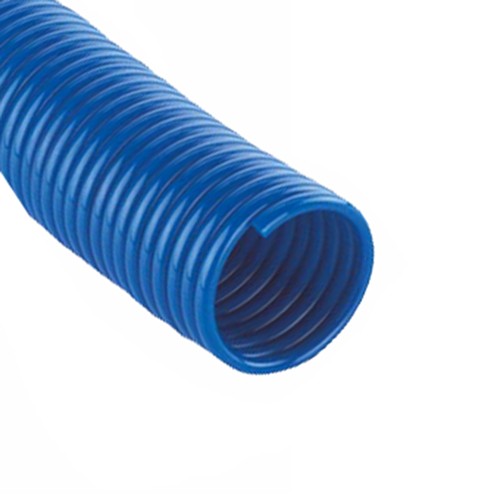

Polyamide tubing without connecting pieces, permanent-helically and tightly coiled, flexible, dimensionally stable, high long-term return spring force also at permanent load, resistant to oils, fuels, and aqueous salt solutions; mechanically stable, resistant to abrasion.
UV-resistant.
Technical specification
Material: PA 12 soft (polyamide 12, soft)
Colour: blue
Temperature range: -40 to +90 °C
Max. operating pressure: 15 bar at +20 °C
| Item | Image |
Inside Ø inch
|
Außen-Ø Zoll
|
Spiral-Ø außen mm
| ca. Windungen |
Arbeitslänge m
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø inch
|
Außen-Ø Zoll
|
Spiral-Ø außen mm
|
ca. Windungen
|
Arbeitslänge m
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 48040 |
|
1/8" | 3/16" | 38 | 36 | 2,5 | 1 | 51.00 | |
| 48041 |
|
1/8" | 3/16" | 38 | 72 | 5 | 1 | 80.00 | |
| 48042 |
|
1/8" | 3/16" | 38 | 108 | 7,5 | 1 | 115.00 | |
| 48043 |
|
1/8" | 3/16" | 38 | 144 | 10 | 1 | 150.00 | |
| 48044 |
|
3/16" | 1/4" | 75 | 15 | 2,5 | 1 | 54.00 | |
| 48045 |
|
3/16" | 1/4" | 75 | 30 | 5 | 1 | 85.00 | |
| 48046 |
|
3/16" | 1/4" | 75 | 45 | 7,5 | 1 | 118.00 | |
| 48047 |
|
3/16" | 1/4" | 75 | 60 | 10 | 1 | 155.00 | |
| 48048 |
|
3/16" | 1/4" | 75 | 90 | 15 | 1 | 171.00 | |
| 48049 |
|
3/16" | 1/4" | 75 | 140 | 22,5 | 1 | 256.00 | |
| 48050 |
|
1/4" | 5/16" | 75 | 15 | 2,5 | 1 | 54.00 | |
| 48051 |
|
1/4" | 5/16" | 75 | 30 | 5 | 1 | 85.00 | |
| 48052 |
|
1/4" | 5/16" | 75 | 45 | 7,5 | 1 | 118.00 | |
| 48053 |
|
1/4" | 5/16" | 75 | 60 | 10 | 1 | 155.00 | |
| 48054 |
|
1/4" | 5/16" | 75 | 90 | 15 | 1 | 171.00 | |
| 48055 |
|
1/4" | 5/16" | 75 | 135 | 22,5 | 1 | 256.00 | |
| 48056 |
|
5/16" | 3/8" | 115 | 10 | 2,5 | 1 | 59.00 | |
| 48057 |
|
5/16" | 3/8" | 115 | 20 | 5 | 1 | 90.00 | |
| 48058 |
|
5/16" | 3/8" | 115 | 30 | 7,5 | 1 | 125.00 | |
| 48059 |
|
5/16" | 3/8" | 115 | 40 | 10 | 1 | 163.00 | |
| 48060 |
|
5/16" | 3/8" | 115 | 60 | 15 | 1 | 189.00 | |
| 48061 |
|
5/16" | 3/8" | 115 | 90 | 22,5 | 1 | 242.00 | |
| 48062 |
|
3/8" | 1/2" | 140 | 8 | 2,5 | 1 | 77.00 | |
| 48063 |
|
3/8" | 1/2" | 140 | 15 | 5 | 1 | 120.00 | |
| 48064 |
|
3/8" | 1/2" | 140 | 23 | 7,5 | 1 | 155.00 |
