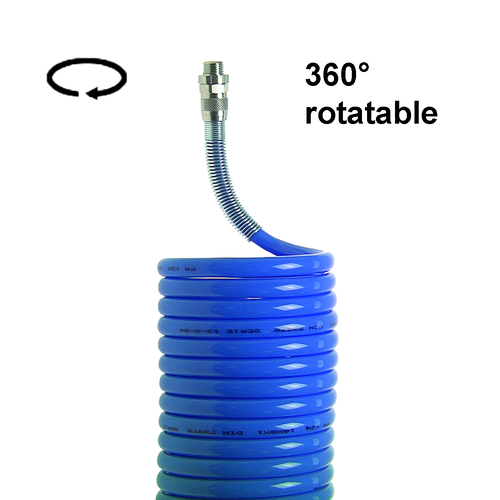

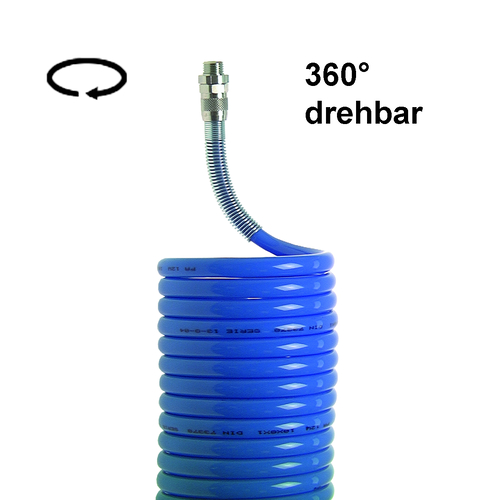

PA Spiral Tubing with Rotatable Male G-Threads
Application area
Compressed air lines in the low pressure area, mini hydraulics in the measurement technique and control engineering, fuel and lubricant supply systems, low pressure lines (vacuum technology)
Product specification
Good temperature resistance
High impact toughness
Good pressure resistance
Best UV-resistance
Good resistance to stress cracking
Very high abrasion resistance
Water insensitivity
Resistant to most oils, fats, fuels, lacquer solvents and hydraulic liquids
Guaranteed vacuum-resistant up to 755 mmHg (99% vacuum).
Technical specification
Material: PA 12 soft (polyamide 12, soft)
Colour: blue
Temperature range: -40 to +90 °C, for a short time +110 °C
Density: 1.02 g/cm3 (ISO R1183D)
Vacuum resistance: 99 %
Tensile strength: 40 N/mm2 (ISO R 527)
Elongation at break: >50 % (ISO R 527)
Bending strength: 19 N/mm2 (ISO 178)
Connection nozzles: on both sides 80 mm

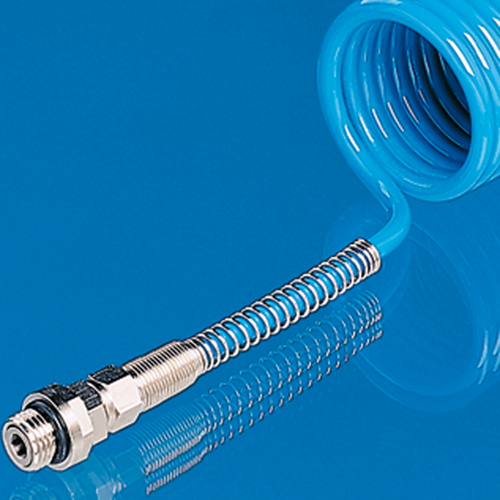

Design: on both sides fitted with antikink device and Rotatable Male G-Threads
Item | Image |
Inside Ø mm
|
Außen-Ø mm
| Außengewinde |
max. Betr.-Druck1 bar
|
Blocklänge mm
|
Arbeitslänge m
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
Außengewinde
|
max. Betr.-Druck1 bar
|
Blocklänge mm
|
Arbeitslänge m
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|
330199 |
|
4 | 6 | G 1/8" | 27 | 140 | 2,5 | 1 | 65.00 | |
330200 |
|
4 | 6 | G 1/8" | 27 | 280 | 5 | 1 | 88.00 | |
330201 |
|
4 | 6 | G 1/8" | 27 | 420 | 7,5 | 1 | 105.00 | |
330202 |
|
6 | 8 | G 1/4" | 19 | 140 | 2,5 | 1 | 67.00 | |
330203 |
|
6 | 8 | G 1/4" | 19 | 280 | 5 | 1 | 105.00 | |
330204 |
|
6 | 8 | G 1/4" | 19 | 425 | 7,5 | 1 | 131.00 | |
330205 |
|
9 | 12 | G 3/8" | 19 | 140 | 2,5 | 1 | 114.00 | |
330206 |
|
9 | 12 | G 3/8" | 19 | 380 | 5 | 1 | 148.00 | |
330207 |
|
9 | 12 | G 3/8" | 19 | 570 | 7,5 | 1 | 212.00 |
[1] at +20 °C
