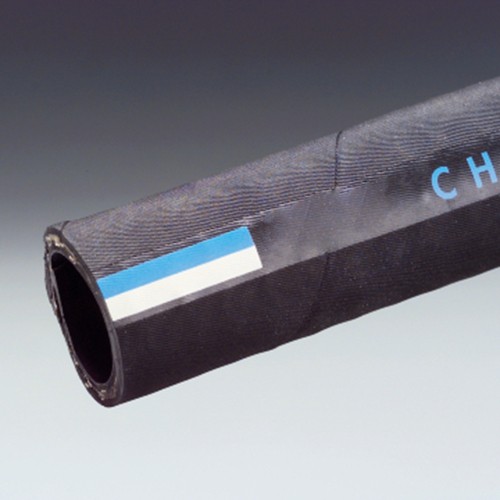

UHMW-PE Antista Double-Wall Jacket Chemical Tubing
Product specification
Suction and pressure tubing.
Liner: extraordinary chemical resistance to most alkalis, acids, and solvents.
Jacket: antistatic properties, good abrasion resistance, good resistance to ozone, weather, and aging, good flame resistance.
Technical specification
Material:
Liner: UHMW-PE cross-linked (Ultra High Molecular Weight Polyethylene)
Jacket: EPDM, smooth, black, textured liner
Colour: inside and outside black
Temperature range: -35 to +100 °C
Insert: polyester braid + 1 spiralized steel wire + 2 Cu woven stranded wires
Max. operating pressure: 16 bar at +20 °C
Bursting pressure: 64 bar at +20 °C
Vacuum resistance: 100 mbar at +20 °C
Max. electric resistance: interior and exterior R 106 Ohm/m
Max. electric resistance through the hose wall: 109 Ohm
Marking: according to EN 12115 (Ohm) blue/white longitudinal stripes
Regulations: FDA; BfR Kat III, EN 12115; TRbF 131/2
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
12343 |
|
19 | 31 | 16 | 115 | 1 | 135.00 | |
12344 |
|
19 | 31 | 16 | 115 | 3 | 319.00 | |
12345 |
|
25 | 37 | 16 | 225 | 1 | 187.00 | |
12346 |
|
25 | 37 | 16 | 225 | 3 | 450.00 | |
12347 |
|
32 | 44 | 16 | 265 | 1 | 195.00 | |
12348 |
|
32 | 44 | 16 | 265 | 3 | 469.00 | |
12349 |
|
38 | 51 | 16 | 340 | 1 | 206.00 | |
12350 |
|
38 | 51 | 16 | 340 | 3 | 489.00 | |
12351 |
|
50 | 66 | 16 | 415 | 1 | 250.00 | |
12352 |
|
50 | 66 | 16 | 415 | 3 | 596.00 | |
12353 |
|
75 | 91 | 16 | 525 | 1 | 296.00 | |
12354 |
|
75 | 91 | 16 | 525 | 3 | 672.00 |
[1] at +20 °C
