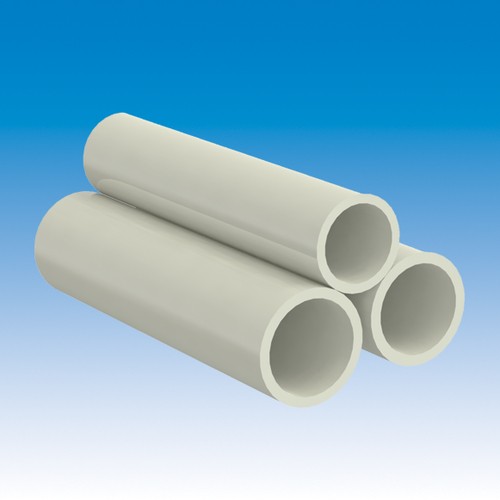

PP Pressure Pipe

Preview: PP Pressure Pipe Preview: PP Pressure Pipe
PP Pressure Pipe
PP Pressure Pipe


Description General Information
Description
Technical specification Material: PP -H (polypropylene) Colour: grey (RAL 7032)... more
Close menu

Technical specification

Material: PP-H (polypropylene)

Colour: grey (RAL 7032)

Temperature range: +5 to +100 °C

Shore hardness D: 72° (ISO 868)

Density: 0.91 g/cm3 (ISO 1183)

Yield stress: 33 MPa (DIN EN ISO 527)

Elongation at break: 70 % (DIN EN ISO 527)

Elongation at yield: 8 % (DIN EN ISO 527)

Tensile modulus: 1,700 MPa (DIN EN ISO 527)

Impact toughness: without break (DIN EN ISO 179)

Notch impact strength: 9 kJ/m2 (DIN EN ISO 179)

Coefficient of linear thermal expansion: 1.6 × 10-4 (DIN 53752)

Burning behaviour: DIN 4102 B2 normal flammability (self-assessment without test certificate)

Surface resistivity: 1013 Ohm (DIN IEC 60093)

Max. operating pressure: 16 bar at +20 °C

Design: plain-end pipes

Special features: Drinking water certification as per KTW and DVGW W270, physiological safety in accordance with BfR, food compliance FDA and EU 10/2011

General Information
more
Close menu
No additional information available.
