Fluorpolymer Antista Double-Wall Jacket Suction / Pressure Tubing
Application area
Chemical industry, mineral oil industry, process chemistry, basic material industry
Product specification
The Inliner is a polymer of three fluorine synthetic components of which one is not fully consolidated
Very good chemical resistance.
Antiadhesive properties facilitate the transport of viscous materials. Therefore, the tubing is particularly suitable for the conveyance of pharmaceuticals and cosmetics.
Tubing core is physiologically safe. It meets the requirements of the food law for conveyance of food and semi-luxuries.
Liner does not contain any leachable constituents, the flow medium remains clear and undiscoloured.
Jacket is smooth and hardly inflammable
Good abrasion resistance.
Good resistance to aging and weather.
Very good dielectric properties
Technical specification
Material:
Liner: Fluorpolymer, smooth bore, non-electrically conducting
Jacket: CR (chloroprene rubber)
Colour: liner white, jacket black
Temperature range: -30 to +100 °C, open steam cleaning up to 30 min. at max. +130 °C

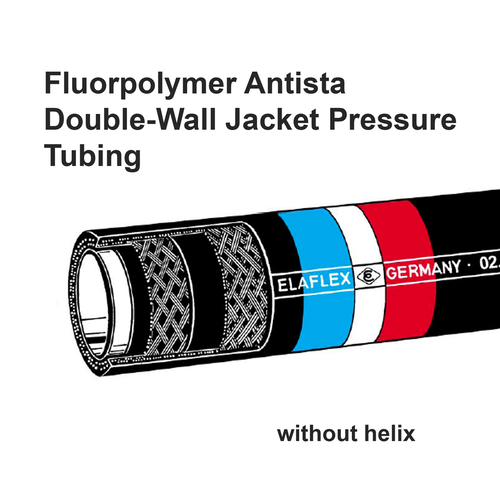

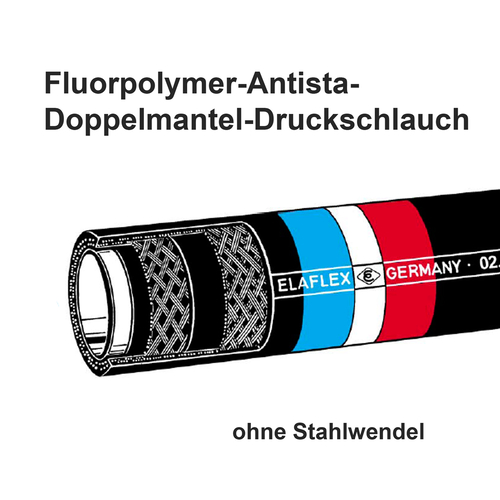

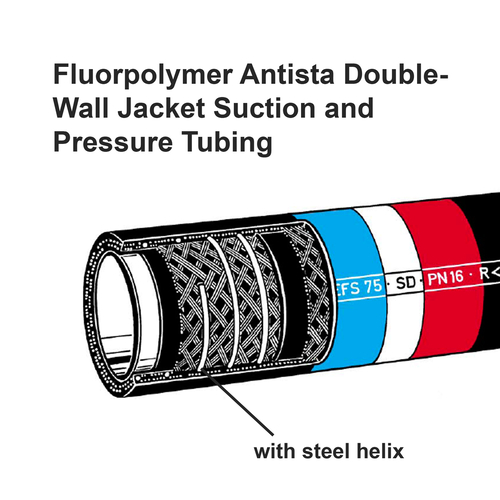

Insert: two textile braids with tinned copper strands, from inside Ø 32 additionally with galvanised steel helix
Design: antistatic jacket
Leakage resistance: <106 Ohm
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Vakuum1 mbar
|
min. Biegeradius mm
| Stahlwendel |
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Vakuum1 mbar
|
min. Biegeradius mm
|
Stahlwendel
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|
83154 |
|
13 | 22 | 16 | 600 | 100 | ohne | 1 | 212.00 | |
83155 |
|
13 | 22 | 16 | 600 | 100 | ohne | 3 | 396.00 | |
83157 |
|
19 | 31 | 16 | 500 | 125 | ohne | 1 | 266.00 | |
83160 |
|
25 | 37 | 16 | 400 | 150 | ohne | 1 | 277.00 | |
83166 |
|
38 | 51 | 16 | 900 | 150 | mit | 1 | 300.00 |
[1] at +20 °C
