Product specification

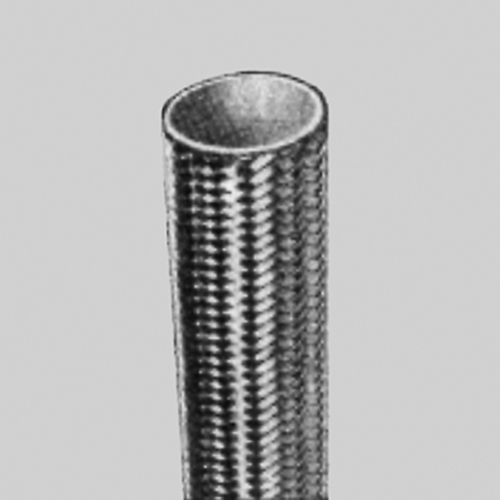

Suction and pressure tubing made of PTFE with braiding of stainless steel for highest pressures.
Exception: High-pressure gases above 130 bar at simultaneously thermal and mechanical alternating load.
The inner layer is produced conforming to FDA and suitable for food contact.

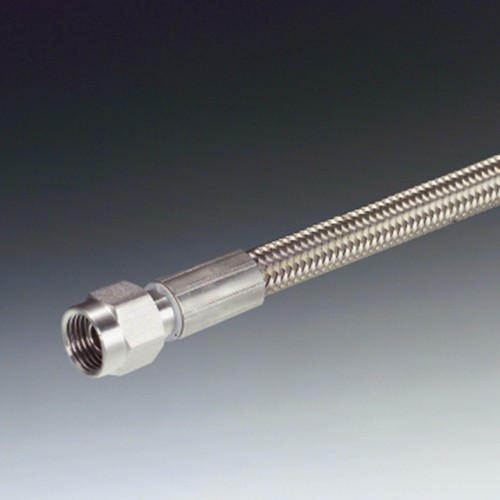

Symbolic picture, delivered without connections! On request, however, can be made for you!
Technical specification
Material:
Liner: PTFE-copolymer (polytetrafluoroethylene)
Jacket: stainless steel braiding (AISI 304/305)
Temperature range: -60 to +260 °C
Bursting pressure: approx. 3-fold dynamic operating pressure
Conductivity: The stainless steel braiding forms the electrically conductive connection between the fittings.
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 49600 |
|
5 | 8 | 265 | 50 | 1 | 97.00 | |
| 49601 |
|
5 | 8 | 265 | 50 | 3 | 228.00 | |
| 49602 |
|
6 | 9,5 | 250 | 60 | 1 | 99.00 | |
| 49603 |
|
6 | 9,5 | 250 | 60 | 3 | 239.00 | |
| 49604 |
|
8 | 11,4 | 200 | 100 | 1 | 102.00 | |
| 49605 |
|
8 | 11,4 | 200 | 100 | 3 | 244.00 | |
| 49606 |
|
10 | 13,3 | 165 | 125 | 1 | 125.00 | |
| 49607 |
|
10 | 13,3 | 165 | 125 | 3 | 297.00 | |
| 49608 |
|
12 | 17 | 135 | 150 | 1 | 174.00 | |
| 49609 |
|
12 | 17 | 135 | 150 | 3 | 415.00 | |
| 49610 |
|
16 | 20 | 100 | 200 | 1 | 234.00 | |
| 49611 |
|
16 | 20 | 100 | 200 | 3 | 562.00 | |
| 49612 |
|
19 | 23,1 | 70 | 250 | 1 | 258.00 | |
| 49613 |
|
19 | 23,1 | 70 | 250 | 3 | 619.00 | |
| 49614 |
|
25 | 30 | 60 | 300 | 1 | 321.00 | |
| 49615 |
|
25 | 30 | 60 | 300 | 3 | 619.00 |
[1] at +20 °C
