Application area
Protection of lines at stationary installation and building, particularly under unfavourable environmental conditions in the areas of machine engineering, chemical apparatus construction, electronics.
Conveyance of aggressive as well as sensitive liquid and gaseous media at mobile and vibrating apparatuses and equipments in the areas of environmental research, environmental analytics, semiconductor production, chemical process automatization, biotechnology, nuclear technology and radiochemistry.
Product specification

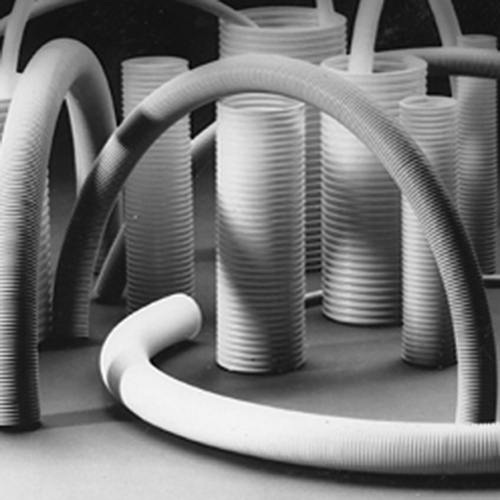

Temperature resistant corrugated pipe made of flame-resistant, highly stable fluorocarbon material PVDF, transparent or black coloured. Flexible, mechanically strongly loadable, particularly high abrasion resistance and impact toughness even at low temperatures, favourable electric properties; biocompatible, sterilizable at +121 °C. Highest chemical resistance to nearly all aggressive media such as halogens, ozone, strong acids and alkalis, solvents, and aromatic hydrocarbons; limited use with aliphatic solvents such as acetone and ethyl acetate, unstable to fuming sulfuric acid, acetic anhydride, and amines.
Technical specification
Material: PVDF (polyvinylidene fluoride)
Temperature range: -60 to +150 °C (DIN 53446)
Density: 1.78 to 2.00 g/cm3 (DIN 53479)
Protection Rating: IP68
Tearing strength: 40 - 60 N/mm2 (DIN 53455)
Elongation at break: 20 - 30 % (DIN 53455)
Tensile modulus: 1,800 - 3,300 N/mm2 (DIN 53457)
Impact toughness: without break (DIN 53453)
Notch impact strength: 10 until without break (DIN 53453)
Linear expansion coefficient: 0.8 - 1.4 x 10-4 x K-1 (DIN 52523)
Thermal conductivity: 0.12 - 0.19 W/m * K (DIN 52612)
Track resistance: KA1 (DIN 53480)
Dielectric strength: 60 - 100 kV/mm (DIN 53481)
Sterilization: autoclavable (+121 °C); in gas (ethylene oxide); in hot air (+160 °C)
Flame class: UL 94 V-0
| Item | Image |
NW mm
|
Inside Ø mm
|
Außen-Ø mm
|
min. Biegeradius mm
| Farbe |
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Inside Ø mm
|
Außen-Ø mm
|
min. Biegeradius mm
|
Farbe
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 43388 |
|
8,5 | 8,3 | 11,3 | 32 | natur | 1 | 41.00 | |
| 43389 |
|
8,5 | 8,3 | 11,3 | 32 | natur | 5 | 129.00 | |
| 43391 |
|
10 | 9,6 | 13 | 20 | natur | 1 | 43.00 | |
| 43392 |
|
10 | 9,6 | 13 | 20 | natur | 5 | 140.00 | |
| 43393 |
|
10 | 9,6 | 13 | 20 | natur | 10 | 182.00 | |
| 43400 |
|
12 | 12 | 15,8 | 30 | natur | 1 | 47.00 | |
| 43401 |
|
12 | 12 | 15,8 | 30 | natur | 5 | 150.00 | |
| 43402 |
|
12 | 12 | 15,8 | 30 | natur | 10 | 194.00 | |
| 43403 |
|
14 | 13,9 | 18,3 | 50 | natur | 1 | 57.00 | |
| 43404 |
|
14 | 13,9 | 18,3 | 50 | natur | 5 | 163.00 | |
| 43405 |
|
17 | 16,2 | 21,2 | 40 | natur | 1 | 73.00 | |
| 43406 |
|
17 | 16,2 | 21,2 | 40 | natur | 5 | 219.00 | |
| 43407 |
|
17 | 16,2 | 21,2 | 40 | natur | 10 | 343.00 | |
| 43409 |
|
23 | 22,6 | 28,5 | 45 | natur | 1 | 79.00 | |
| 43410 |
|
23 | 22,6 | 28,5 | 45 | natur | 5 | 235.00 | |
| 43411 |
|
23 | 22,6 | 28,5 | 45 | natur | 10 | 374.00 | |
| 43412 |
|
29 | 29 | 34,5 | 55 | natur | 1 | 93.00 | |
| 43413 |
|
29 | 29 | 34,5 | 55 | natur | 5 | 277.00 | |
| 43414 |
|
29 | 29 | 34,5 | 55 | natur | 10 | 423.00 | |
| 43421 |
|
11 | 10,4 | 13,4 | 40 | schwarz | 1 | 45.00 | |
| 43422 |
|
11 | 10,4 | 13,4 | 40 | schwarz | 5 | 142.00 | |
| 43423 |
|
11 | 10,4 | 13,4 | 40 | schwarz | 10 | 182.00 |
